Profibus Stainless M12 Circular Connector B Code PG9 Male Panel IP67

Brand Name : CABLEFORCE

Model Number : MC05P2LSBBP9-22W10

Certification : CUL Certified, CE/ EMC, IP67

Place of Origin : Guangdong, China

MOQ : 100

Price : Negotiated

Payment Terms : T/T

Supply Ability : 60000 pcs/month

Delivery Time : 2~3 weeks

Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

Contacts Poles : 05 Pin

Cable Length : 1M

Connector Gender : female connector

Contact carrier : PA66, GF

Keyway Coding : B Coding

Tightening Torque : 0.6Nm

Cable Color : Brown, White, Blue, Black, Gray

Wire gauge : 0.25 m㎡

Contact Now

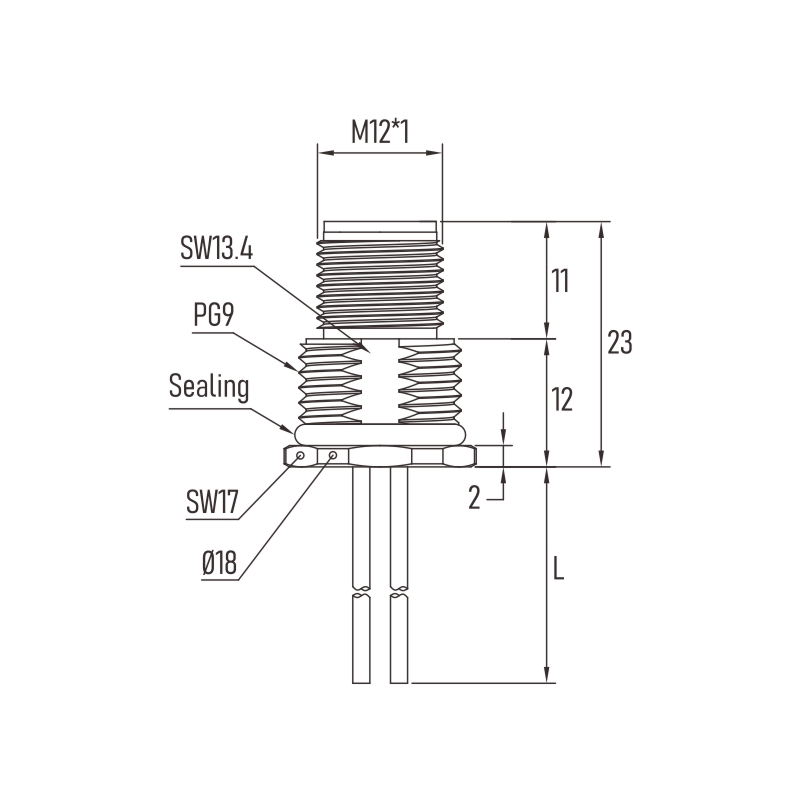

Profibus Stainless M12 Circular Connector B Code PG9 Male Panel
Connector Technical Data
Model Number
 MC05P2LSBBP9-22W10
Connectors No.
5 Pin
Rated Current
4A
Rated Voltage
60V
Impulse Voltage
2500V
O ring FKM, Silicon
Insulation resistance 100MΩ
Contact resistence 5MΩ
Termination Soldering
Contact Phosphor bronze
Screw nut Brass, CNC, Nickled plated
Description
They are available with 3, 4, 5, 8 and 12 pins. While higher pin counts are not planned, other locking styles such as bayonet and push-pull are continuously under development. M12 connectors are circular connectors with a 12-mm locking thread used for sensors, actuators, Fieldbus and industrial Ethernet, primarily in factory automation applications. Often with ratings ofIP65, IP68 and IP69K, they are ideal for washdown and corrosive environments.

Mechanical Performance

Coupling method: threaded connection

Direction: Straight/Angled

Mechanical operation: ＞500 mating cycles

Wire gauge for solder cable type: 0.140.25/0.34/0.5mm²/(26/24/22/20AWG)

FAQ

● What is a panel interface connector?

A panel interface connector (PIC) is a device that typically mounts to the outside of a control panel in a manufacturing or other automation setting. Once installed, the PIC, which houses convenient pass-through connections, allows the user to interface with the computer, PLC, or other programmable devices inside the control panel without opening the panel door.

Profibus Stainless M12 Circular Connector B Code PG9 Male Panel IP67


Product Tags:

Stainless M12 Circular Connector



IP67 M12 Circular Connector



PG9 Male Profibus M12 Connector
