PUR Unshielded Male M12 A Coded Cable Sensor Actuator 8pin Connectors 2m

Name: PUR Unshielded Male M12 A Coded Cable Sensor Actuator 8pin Connectors 2m
Brand: CABLEFORCE
Price: 1 USD

Brand Name : CABLEFORCE

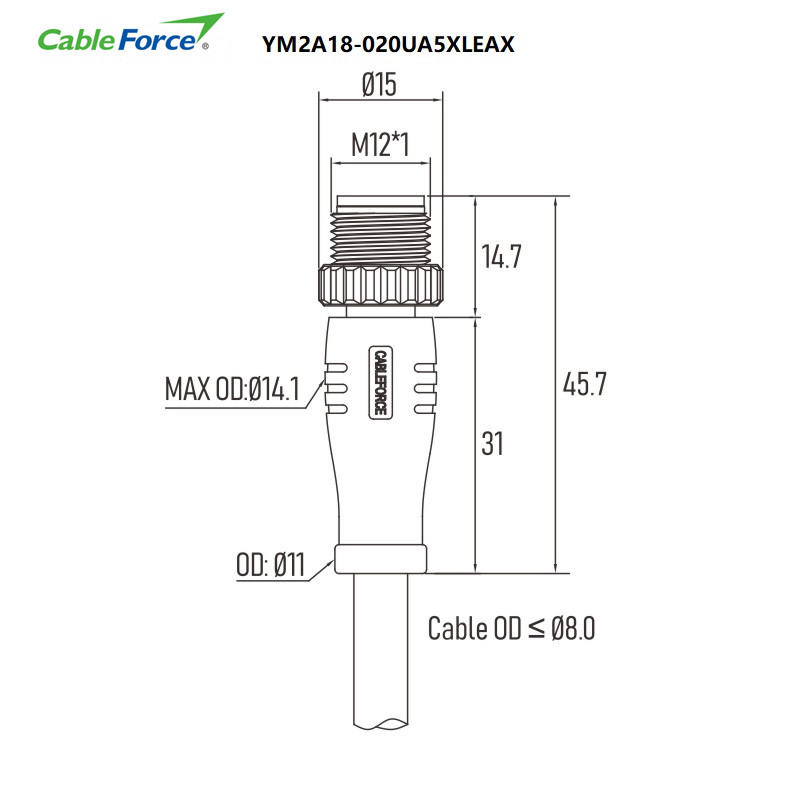

Model Number : YM2A18-020UA5XLEAX

Certification : UL Certified, CUL Certified, CE/ EMC, IP67, IP69K

Place of Origin : Guangdong, China

MOQ : 100

Price : Negotiated

Payment Terms : T/T

Supply Ability : 60000 pcs/month

Delivery Time : 2~3 weeks

Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

Contacts Poles : 08 Pin

Cable Length : 2M

Connector Gender : Male connector

Cable Jacket : PUR

Keyway Coding : A Coded

EMC Shielding : Un-shielded

Cable Color : Black, Orange, Yellow, Gray

Reference Standard : IEC 61076-2-101

Contact Now

A Coded Male M12 Sensor Actuator Cable 8pin Connectors 2m PUR Unshielded

Connector Technical Data
Model Number	2095868
Connectors No.	8Pin
Rated Current	2A
Rated Voltage	30V
Impulse Voltage	800V
Wire Gauge	0.25mm²(AWG 24)
Over-molding	TPU
Contact Carrier	TPU+GF
Screw Nut	Brass, CNC, nickel-plated
Contact	Brass(Male), Phosphor bronze(Female)
Contact Plating	Au(Gold)
Protection Degree	IP67,IP68

Description

M12 circular connectors with M12 locking thread for Automation, Process control, industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel mounted receptacles, field attachable installable connectors with industry standard A,B,D,X,S,T,K,L and Y keyway coding options.

M12 series with wide product range of panel type connectors for sensor/actuator components offers comprehensive solutions for M12 devices connection.M12 panel mount connectors are available for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly with rear mount type and front mount type.

CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant

Cableforce Core Benefits

● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
