Brand Name : CABLEFORCE
Model Number : MC17P2LSABP9-26W05
Certification : CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin : Guangdong, China
MOQ : 100
Price : Negotiated
Payment Terms : T/T
Supply Ability : 60000 pcs/month
Delivery Time : 2~3 weeks
Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Reference Standard : IEC 61076-2-101
Contacts Poles : 17 Pin
Wire Gauge (size) : 0.14mm²(26AWG)
Contacts Termination : Soldering
Contacts Material : Phosphor bronze, machined solid pin
Panel Cut Size : PG9, M16x1.5
Cable Flamability : VW-1
Warranty : 3-years quality guarantee period
Cable Features : UV-Resistant, Crosion resistant, Hydrolysis resistant, Oil resistance
Temperature Rating : -40°C ~ + 80°C, -40°C ~ + 105°C
Waterproof Depth : IP67 1m depth 30 minutes, IP69K against high pressure
Insert : PA66+GF
Contacts Plating : 3μ" Gold plating thickness
Protection degree : IP67, IP69K
Connector Technical Data | |||||||||
Model Number | MC17P2LSABP9-26W05 | ||||||||
Tightening Torque | 0.6Nm | ||||||||
Locking System | M12 ×1.0 screw | ||||||||
Connectors No. | 17 Pin | ||||||||
Rated Current | 1.5A | ||||||||
Rated Voltage | 30V | ||||||||
Impulse Voltage | 500V | ||||||||
O Ring | FKM , Silicon, O-Ring | ||||||||
Insulation Resistance | ≥100MΩ | ||||||||
Contact Resistence | ≤5MΩ | ||||||||
Termination | Soldering | ||||||||
Cable Length | 1M or Customized length | ||||||||
Connector Flamability | UL94 V0 | ||||||||
Panel locking side | Front side fastening the nut | ||||||||
Pollution Degree | 3 | ||||||||
Protection Degree | IP67, IP69K |

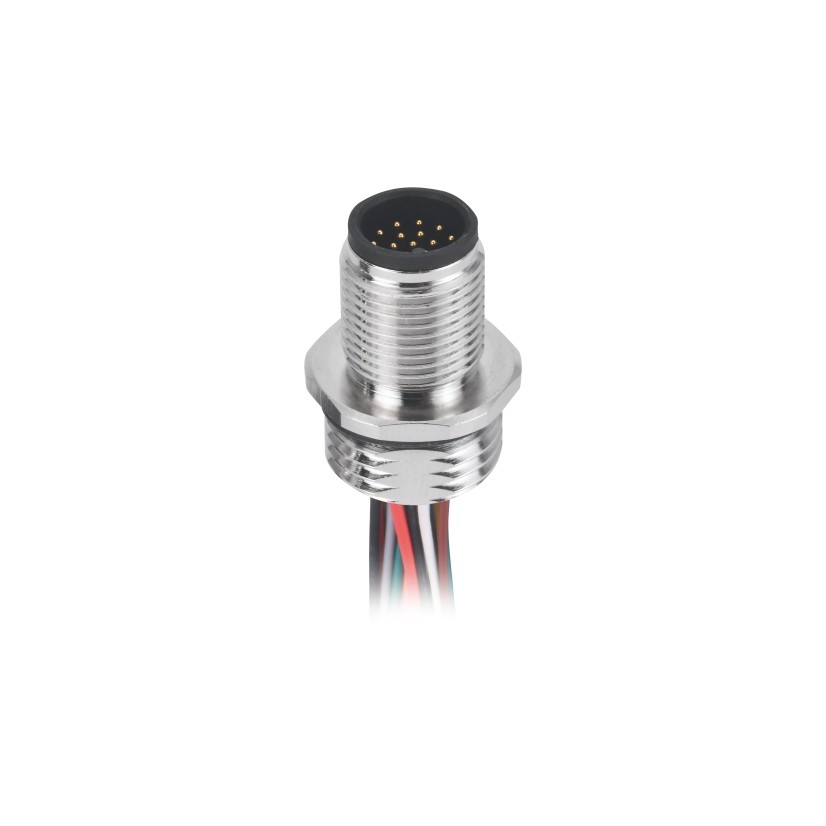

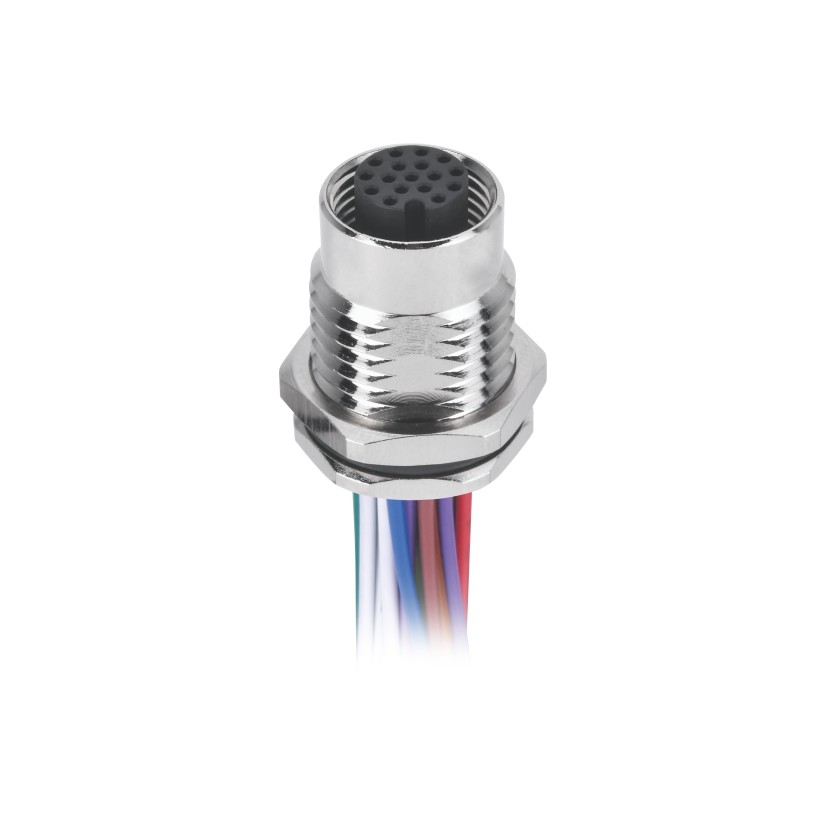

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, M, Y-Coding.
● 2 pin, 3 pin, 4 pin, 5 pin, 7 pins, 8 pin, 12 pin, 17 pins
● PCB contacts, Solder type with (custom wire specification)
● Stainless steel and Plastic connector available
● Voltage rating: 600V, 250V, 60V, 30V
● Current rating: 16A, 4A, 3A, 1.5A
● IP67, IP69K protection degree
● Anti-vibration
● Tailor made material to meet various application conditions
