Ethernet Cable M12 X Coded Connector Right Angled Male To Female Molded 1m Pur Cat 6a 4px26awg Profinet Cable

Name: Ethernet Cable M12 X Coded Connector Right Angled Male To Female Molded 1m Pur Cat 6a 4px26awg Profinet Cable
Brand: CABLEFORCE
Price: 1 USD

Brand Name : CABLEFORCE

Model Number : MC08C3RSXSB26RG10

Certification : CUL Certified, CE/ EMC, IP67, IP69K

Place of Origin : Guangdong, China

MOQ : 100

Price : Negotiated

Payment Terms : T/T

Supply Ability : 60000 pcs/month

Delivery Time : 2~3 weeks

Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

Reference Standard : IEC 61076-2-109

Connector Gender : Male to Female

Keyway Coding : X-Coding

Over Molding : TPU

Cable Length : 1M or Customized length

Cable Jacket : PUR

Wire Gauge : 0.14mm²(AWG 26) Cat 6A Ethernet Cable

Pin : 8pin

Connector type : M12 X Coding Connector

Rated Current : 0.5A

Rated Voltage : 50V AC, 60V DC

Termination : Soldering

Contact Carrier : PA66+GF

Contacts Plating : Au(Gold)

Protection degree : IP65/IP67

Contact Now

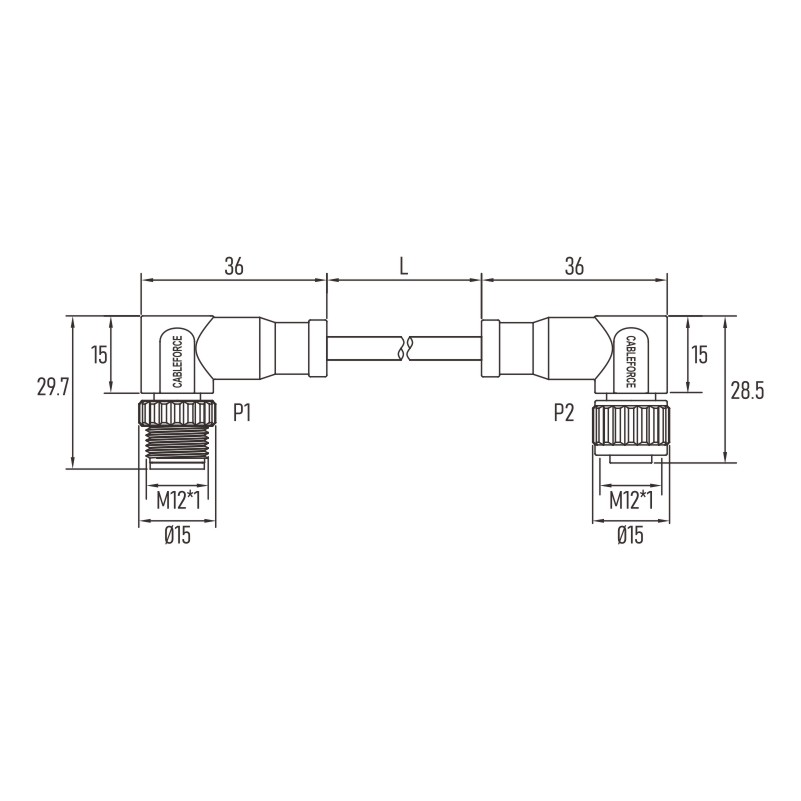

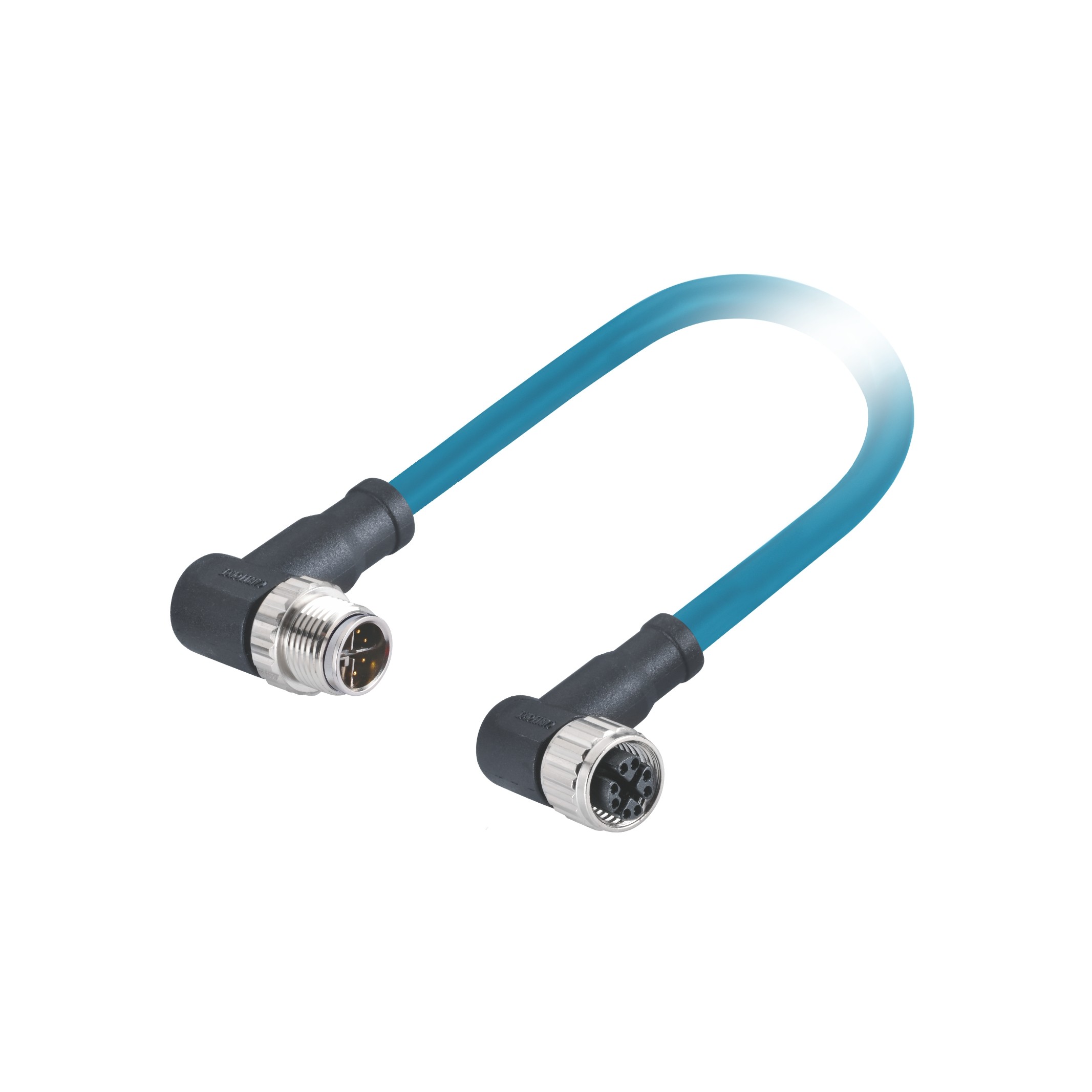

Ethernet Cable M12 X Coding Connector Right Angled Male to Female Molded 1M PUR Cat 6A 4Px26AWG Profinet Cable

Connector Technical Data
Model Number	MC08C3RSXSB26RG10
Tightening Torque	0.4Nm
Locking System	M12 ×1.0 screw
Connectors No.	8 Pin
Rated Current	0.5A
Rated Voltage	50V AC, 60V DC
Impulse Voltage	800V
O Ring	FKM , Silicon, O-Ring
Insulation Resistance	≥100MΩ
Contact Resistence	≤5MΩ
Termination	Soldering
Cable Length	1M or Customized length
Contact Carrier	PA66,GF
Pollution Degree	3
Protection Degree	IP65, IP67

Description of M12 X Coding Ethernet Cable

The M12 X-coding connector conforms to IEC 61076-2-109; it meet Cat 6A specifications with data transmission rates up to 10 Gbps, these high-speed connectors are designed for industrial communications and networks, video surveillance and other applications requiring a fast and reliable Ethernet connection. CABLEFORCE offers M12 X-Coding cable molded cordsets and M12 X-Coding PCB panel mount receptacles as well as male M12 X-Code to RJ45 male connector with different customized cable material and cable specifications.

● Cable available with PUR, PVC, LSZH, NFPA130 material

● Custom cable specification and lengths

● Rated: 48V/ 0.5A

● Up to 500Mhz/ 10Gbps

● Protection degree IP67

Feature Of M12 Circular Connector

1. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. Connector Screw/Nut:Plastic/Brass/Stainless steel

5. High temperature 260 degree ,solder reflowing
6. 90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
8. A-coding/B-coing/D-coding

9.Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance

FAQ

● Are M12 connectors waterproof?

The M12 connecting interface features waterproof protection (IP65/IP68/IP69K), cross-manufacturer compatibility (IEC 61076-2), and multipurpose applications (Signal, Power, Network). The standard codings of M12 are A-, B-, D-, K-, L-, X-, S-, and Y coding.

● Are all M12 connectors interchangeable?

M12 connectors are one of the most popular industrial connector solutions on the market. They are part of an IEC specification that ensures all A-Code connectors are interchangeable with each other.

● Are you provide OEM , ODM Service?

Globally supplying customers with excellent quality cable and connectors at affordable price, also in addition to standard industrial circular connectors,Cableforce prides itself in supplying customized development,design and manufacturing of cable and connections to meet customer's specific requirements, as well as customers branding, labeling service.

Ethernet Cable M12 X Coded Connector Right Angled Male To Female Molded 1m Pur Cat 6a 4px26awg Profinet Cable

M12 Cable.pdf
