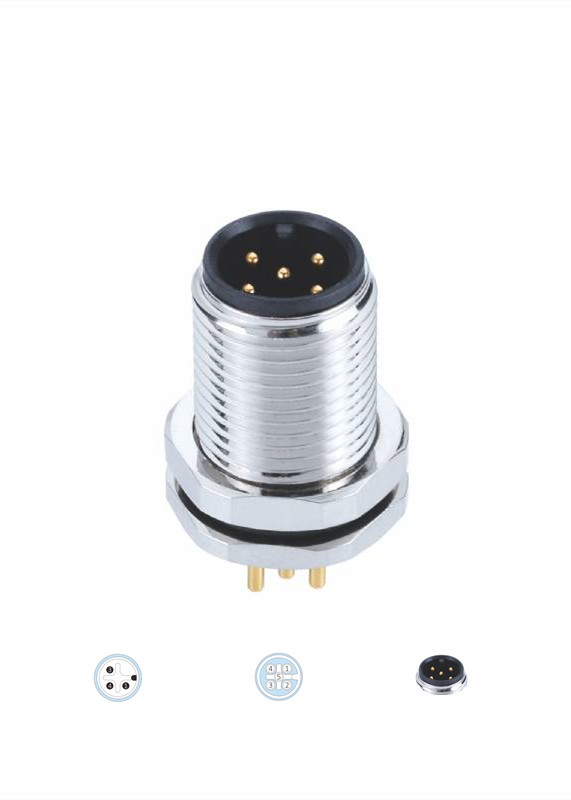

Brand Name : CABLEFORCE
Model Number : MC05P1LPAB12
Certification : CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin : Guangdong, China
MOQ : 100
Price : Negotiated
Payment Terms : T/T
Supply Ability : 60000 pcs/month
Delivery Time : 2~3 weeks
Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Reference Standard : IEC 61076-2-101
Termination : PCB Dip Soldering
Keyway Coding : A-Coded
Keywords : Front / rear mount
Rated Voltage : 60V
Rated Current : 4A
Contacts Poles : 5Pin
Tightening Torque : 0.6Nm
Connector Technical Data | |||||||||
Model Number | MC05P1LPAB12 | ||||||||
Connectors No. | 5Pin | ||||||||
Rated Current | 4A | ||||||||
Impulse Voltage | 250V | ||||||||
Rated Temperature | Flexible:-25 ℃,+80℃ ;Static:40℃,+105℃ | ||||||||
Contacts Plating | Au(Gold) | ||||||||
O ring | FKM, Silicon | ||||||||
Insulation resistance | ≥100MΩ | ||||||||
Contact resistence | ≤5MΩ | ||||||||
Protection degree | IP67,IP68 | ||||||||
Contact carrier | PA66, GF | ||||||||
Pollution degree | 3 |
